Shahrokhi Split Damper

Shahrokhi Split Dampers are used to control the flow of outgoing air between the channels and are placed on the branches of the air channel.

The Split Damper is one of the inter-channel dampers that is installed on the branches of the channels in parallel with the air adjustment reguster.

Technical Specifications :

Row	Name of the piece	Material	Description
1	the frame	galvanized	1.5mm thick sheet is bent
2	Crescent blade	galvanized	1 mm thick sheet is bent

Split damper dimensions

According to the dimensions of the channel, the Split Damper is custom-made.

The use of Split Damper

In places where the air flow is transferred from one source to several zones; Such as large office and commercial buildings and factories, etc., due to space limitations and the inability to create take-off in the channels, Split Dampers are used to cut the air and control the flow rate of the outgoing air flow.

instruction

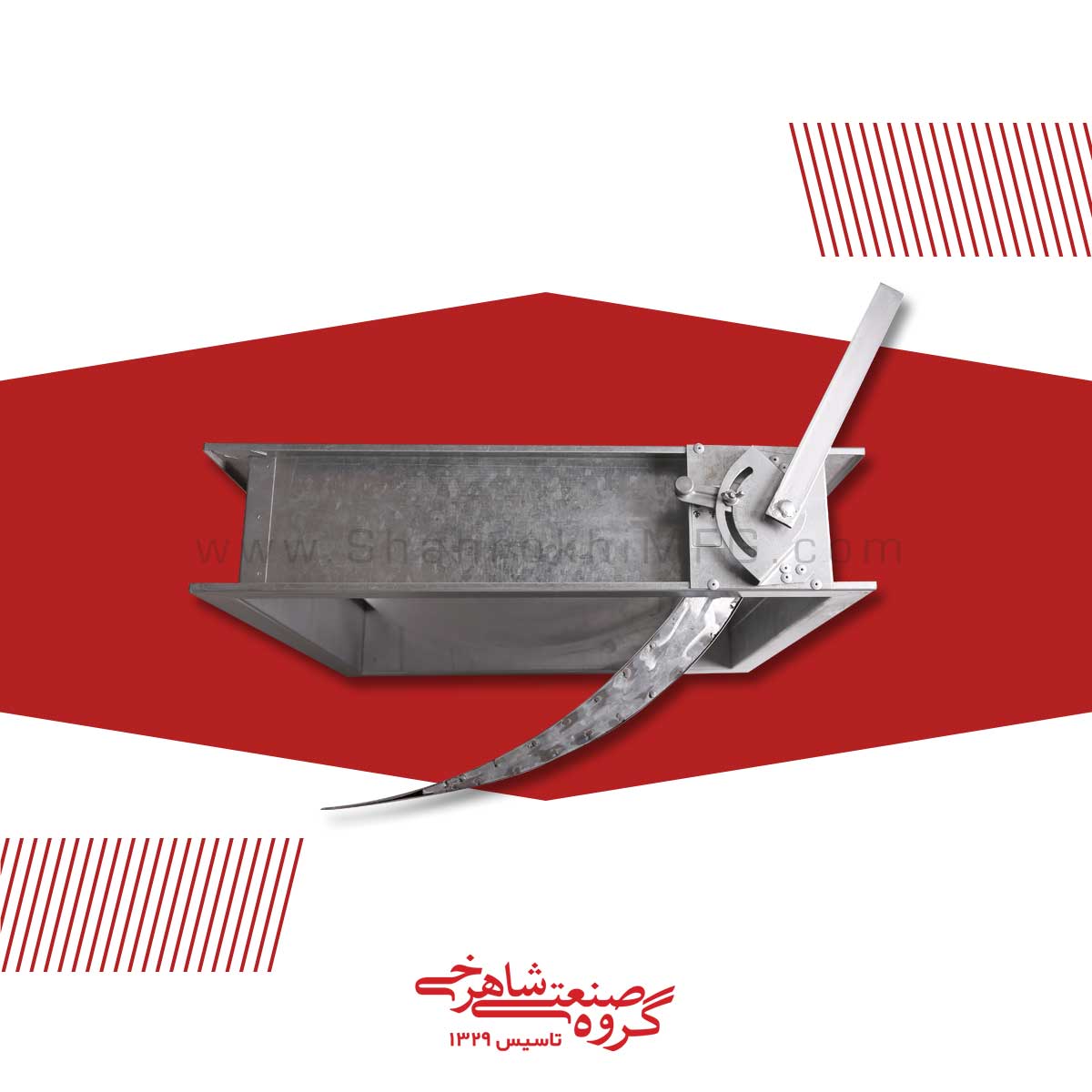

The opening of the crescent blade in the opposite direction of the passing air flow causes the air to be cut towards the opening and directs the air flow into the sub-channel. It is control.

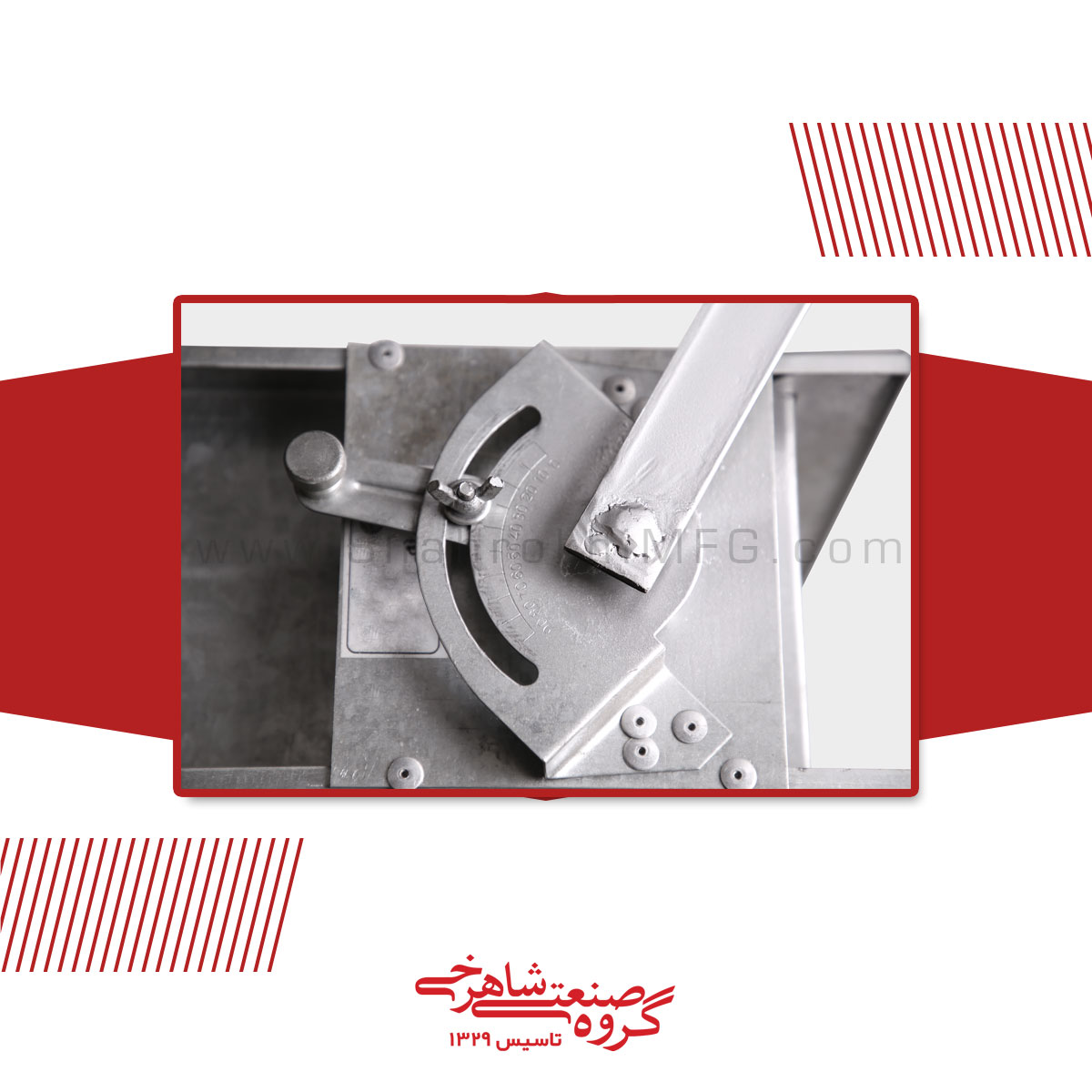

By turning the hand clamp, the amount of opening of the crescent vane can be mechanically changed, and as a result, the amount of flow passing through the sub-channels can be controlled. The more the crescent vane opens, the more air flow will enter the sub-branch. Airborne dampers are usually controlled manually, but it can be remotely controlled electrically by installing a motor on the damper shaft.

Product order code

Shahrokhi Split Dampers are marked with the order code SH.DDA.

SH: Shahrokhi factory

DDA: channel damper

Capabilities of the Split Damper

• Catching the branch from the air in the channels
• The ability to change the depth of the damper in the required size
• Can be used mechanically and electrically
• Can be made with galvanized sheet and stainless steel and iron with different thicknesses
• Ability to build in required dimensions
