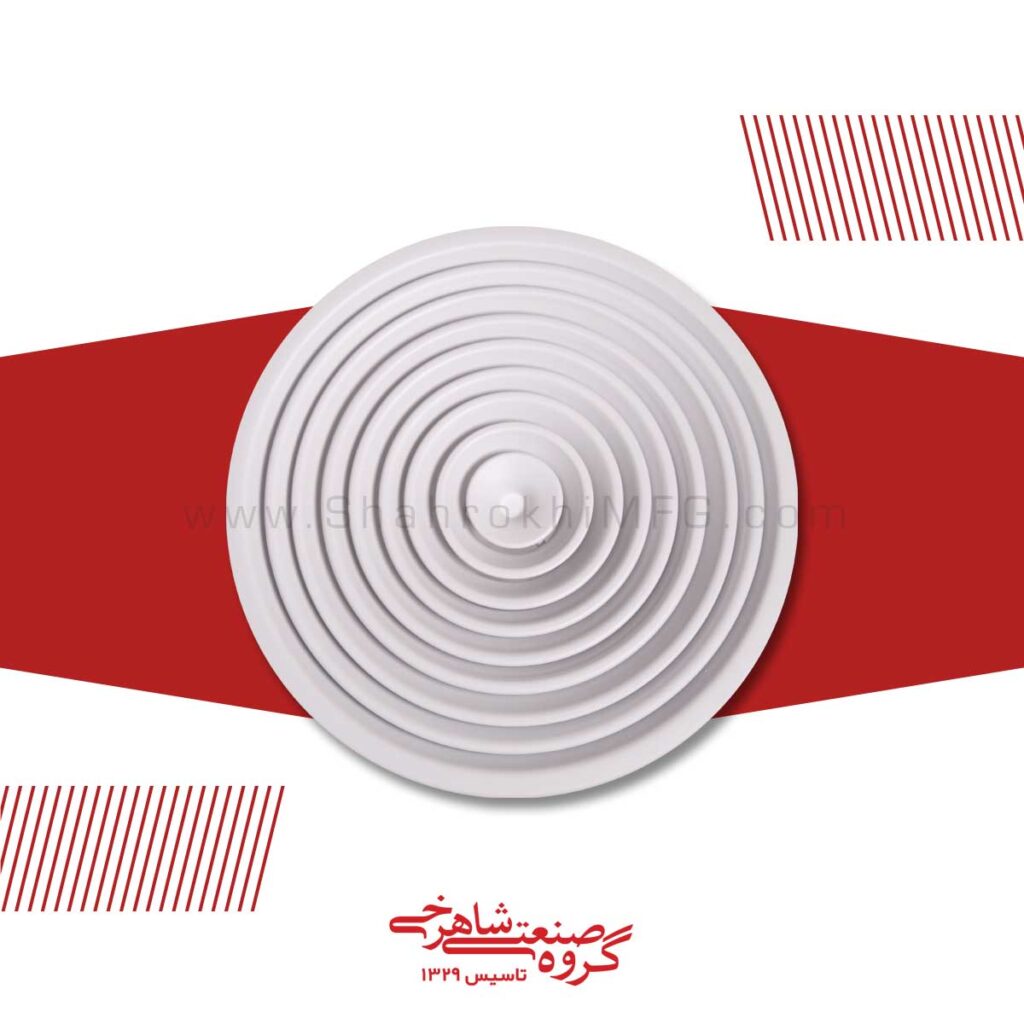

Spring Flat Round Diffuser

Spring Flat Round Diffuser

The flat round Diffuser is generally used in spaces with a height of three meters or more. Of course, the maximum height of flat round Diffusers for proper ventilation is up to 5 meters.

Flat round Diffusers are for round channels, of course, these Diffusers can be connected to the square channel by changing the square. The type of blades of this type of ceiling Diffuser allows the air flow to move gently downwards and create air conditioning in the space.

Flat round Diffuser, also known as flat round diffuser, is suitable for cooling, heating and air conditioning applications.

Also, this Diffuser can be used as a return and discharge or exhaust Diffuser. These Diffusers can be installed on all kinds of false ceilings and even connect directly to round channels. Due to the property of the spring separation of the vanes from the Diffuser frame, the vanes of this product can be easily separated from the frame and the installation operation can be performed from inside the frame, which means that there is no need for screw holes on the face of the frame, which has a great impact on the appearance and architecture. It will have space.

This Diffuser model is one of the most traditional and common round ceiling Diffuser models, which is also called a speaker Diffuser. The flat round Diffuser injects air into the environment in a branched manner as usual, so that the pressure of the outgoing air does not bother the people who live under the Diffuser. The suitable height for installing this Diffuser is between 3 and 4 meters.

The color coating of these Diffusers is electrostatic or furnace paint with RAL, usually 9016, and it is used to adjust the pressure of the passing air.

Features of spring flat round Diffuser

The flat round Diffuser is an air diffuser, from the round Diffuser subset, which is used to use the exhaust air of heating and cooling systems. The air distribution in this model is 360 degrees through the Diffuser, which helps to distribute the passing air flow more evenly. Also, the air distribution pattern of this model of air adjustment Diffusers is Wide Horizontal and it is suitable for ceilings whose height is 4 meters or less. Due to the structure of their vanes and the aerodynamic structure, these Diffusers create very little noise when the airflow passes over the vanes and do not cause disturbance in the environment.

Material and dimensions of spring flat round Diffuser

The flat round Diffuser can be produced in different sizes. The first size of these Diffusers is 10 cm and can be produced from 2.5 inches up. Its material is usually aluminum. The vanes and the frame of the flat round Diffuser are connected to each other by aluminum bushings and metric screws.

In the old days, these Diffusers were also made of iron, but due to the fact that aluminum is lighter than iron, it is better to use aluminum for painting so that the Diffuser does not lose its shape in terms of appearance. Iron flat round Diffusers were abandoned over time. Of course, this product is still used in minor cases.
