Egg Round Ceiling Diffusers & Grilles

Egg Round Ceiling Diffusers & Grilles

  • Persian: دریچه سقفی گرد شطرنجی
  • English: Egg Round Ceiling Diffusers & Grilles
  • designed to suit H.V.A.C applications where a high ceiling or exposed duct is required.
Category: Round Ceiling Diffusers & Grilles Tags: Egg Round Ceiling Diffuser, Round Ceiling Diffuser, Round Ceiling Diffuser & Grille
  • Description

Description

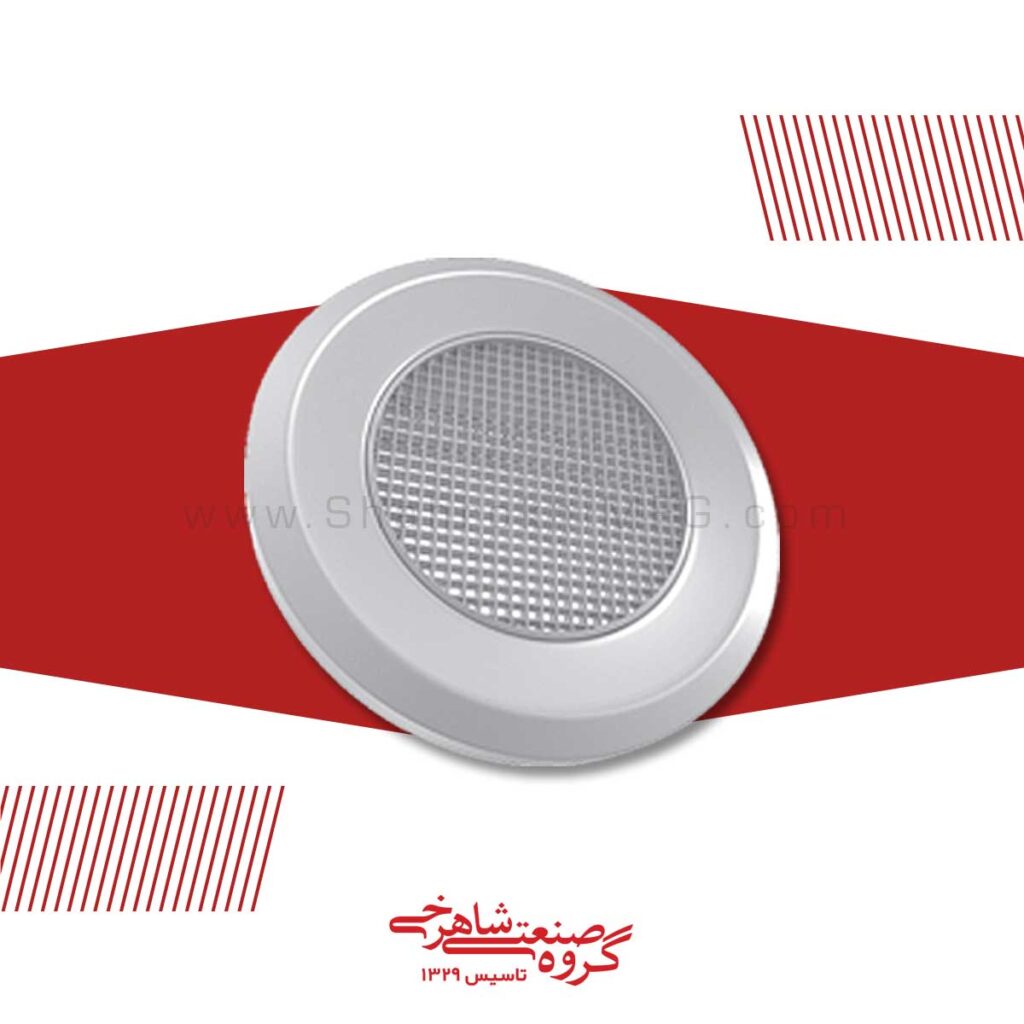

Egg Round Ceiling Diffusers & Grilles

APPLICATION

Shahrokhi egg round ceiling diffusers & grilles are designed to suit H.V.A.C applications where a high ceiling or exposed duct is required.

They are mainly applicable when high air volume at low pressure is desired.

Their attractive appearance makes them suitable for other architectural and decoration applications.

DESCRIPTION

Multi parallel blades of these grilles adjust in vertical and horizontal to control the air flow.

These grilles are an aluminum core which constructed in three types of fixed egg crate grid opening.

BLADES & FRAME

It is possible to fixed at 0, 30 and 45 deg.

angles between vertical and horizontal blades as shown as (Figures).



دریچه سقفی گرد شطرنجی

Egg Round Ceiling Diffusers & Grilles

MATERIAL & FINISH

High quality 1.5mm. thickness extruded aluminum profile in matt aluminum anodized finish for frames.

The blades are aluminum grid with 0.8 mm thickness.

White polyester liquid or powder coating finish is also available or any other specified color with Raul code up on requirement.

ORDERING CODE

Shahrokhi egg round ceiling diffusers & grilles are specified with following ordering code.

SH : Shahrokhi manufacture

RDI : Round ceiling diffuser

T : type : E0 : 0 deg egg

E30 : 30 deg egg

E45 : 45 deg egg

ENGINEERING PERFORMANCE DATA



جدول محاسبات دریچه های سقفی گرد شطرنجی

Table of calculations for Egg Round Ceiling Diffusers & Grilles
