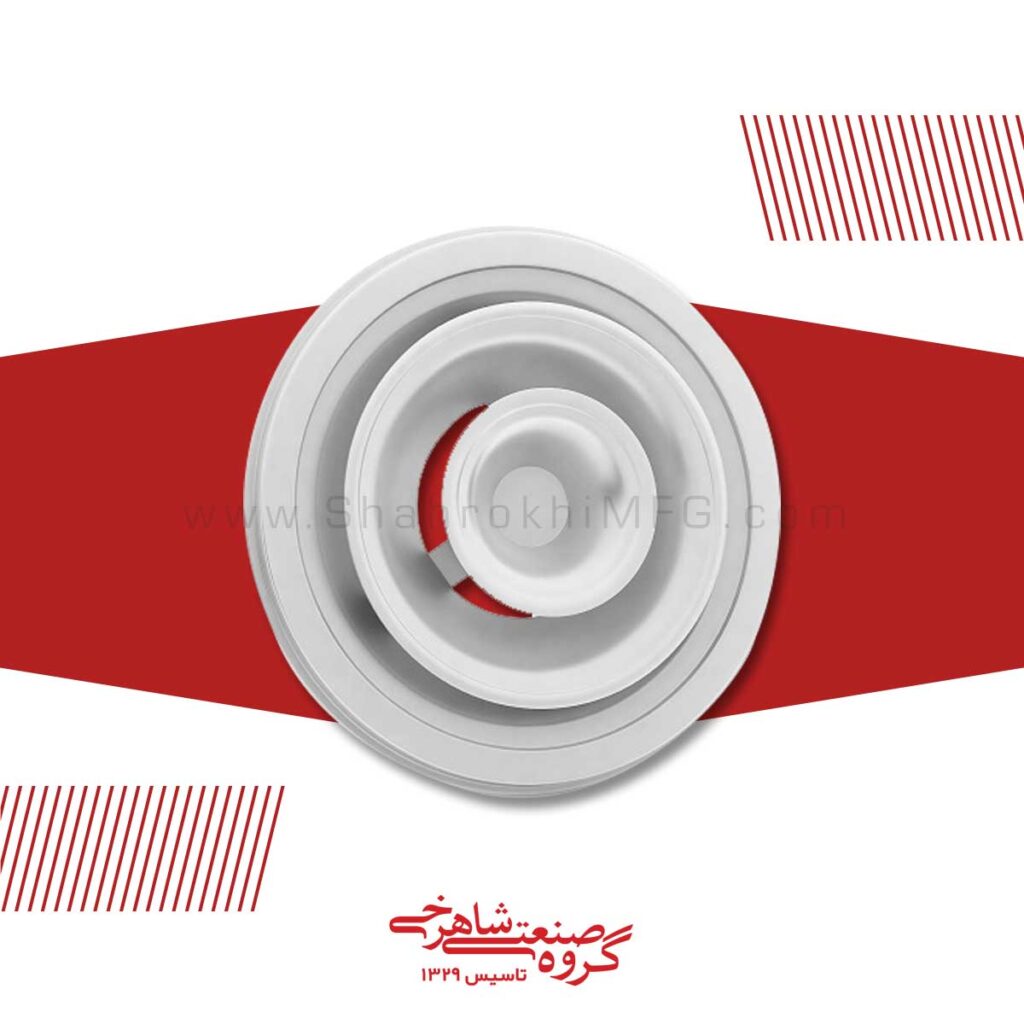

Fixed Round Ceiling Diffusers & Grilles

  • Persian: دریچه سقفی گرد با پره های ثابت
  • English: Fixed Round Ceiling Diffusers & Grilles
  • designed to suit H.V.A.C applications for ceiling mounting or exposed duct.

Fixed Round Ceiling Diffusers & Grilles

APPLICATION

Shahrokhi fixed round ceiling diffusers & grilles are designed to suit H.V.A.C applications for ceiling mounting or exposed duct.

These diffusers are used for supply, return and exhaust air which provide a stable pattern of horizontal air diffusion flowing in every way through a number of concentrically arranged vanes.

These diffusers are construct able in types of F1a , F1b , F2 , F3 , F4a , F4b.





دریچه سقفی گرد با پره های ثابت
Fixed Round Ceiling Diffusers & Grilles
دریچه سقفی گرد با پره های ثابت
Fixed Round Ceiling Diffusers & Grilles
دریچه سقفی گرد با پره های ثابت
Fixed Round Ceiling Diffusers & Grilles
دریچه سقفی گرد با پره های ثابت
Fixed Round Ceiling Diffusers & Grilles
دریچه سقفی گرد با پره های ثابت
Fixed Round Ceiling Diffusers & Grilles
دریچه سقفی گرد با پره های ثابت
Fixed Round Ceiling Diffusers & Grilles

DESCRIPTION

Shahrokhi fixed round ceiling diffusers install easily over the round duct or square duct with an adapter.



دریچه سقفی گرد با پره های ثابت
Fixed Round Ceiling Diffusers & Grilles

In these diffusers high air diffusion flowing under ceiling results in rapid temperature and velocity equalization of the mixed air mass.

MATERIAL & FINISH

High quality 1.5mm. thickness extruded aluminum profile in material aluminum anodized finish for frames and vanes.

White polyester liquid or powder coating finish is also available or any other specified color with Raul code up on requirement.

ORDERING CODE

Shahrokhi fixed round ceiling diffusers grilles are specified with following ordering code.

SH : Shahrokhi manufacture

RDI : Round ceiling diffuser

T : type : F1a : Flat spiral

F1b : Emboss spiral

F2 : Spring

F3 : Roki

F4a : Flat American

F4b : Emboss American

ENGINEERING PERFORMANCE DATA

جدول محاسبات دریچه های گرد مارپیچی
Spiral Round Ceiling Diffusers & Grilles

Calculation table for Roki Round Ceiling Diffusers & Grilles

جدول محاسبات دریچه های سقفی گرد روکی
Calculation table for Roki Round Ceiling Diffusers & Grilles

Calculation table for Spring Round Ceiling Diffusers & Grilles

جدول محاسبات دریچه های سقفی گرد فنری
Calculation table for Spring Round Ceiling Diffusers & Grilles

Calculation table for American Round Ceiling Diffusers & Grilles

جدول محاسبات دریچه های سقفی گرد آمریکایی
Calculation table for American Round Ceiling Diffusers & Grilles
